Module 3
Queen Victoria Garden Pavilion


Secret Rosedale

Secret Rosedale is a pure white pavilion that indicates the holy and pure character of the pavilion. Like the wedding, it evoked the calmness and purity, and romance of the space.

The pavilion is sunken, hidden inside the land, it is a secret place, only you came into it and the whole site will reveal in front.

The shape is a blooming white rose, all about romantic and secret mystery. It celebrates the shadow created by the hollow frame skin. The sharp skin frame is contrasted with curved linear pavilion shape, to show its graciousness and inviolability. In the skin, the lower part  is more closed to provide privacy, while the upper parts are more hollow, utill the dome in the top, to show the shadow as well as connect with the sky.

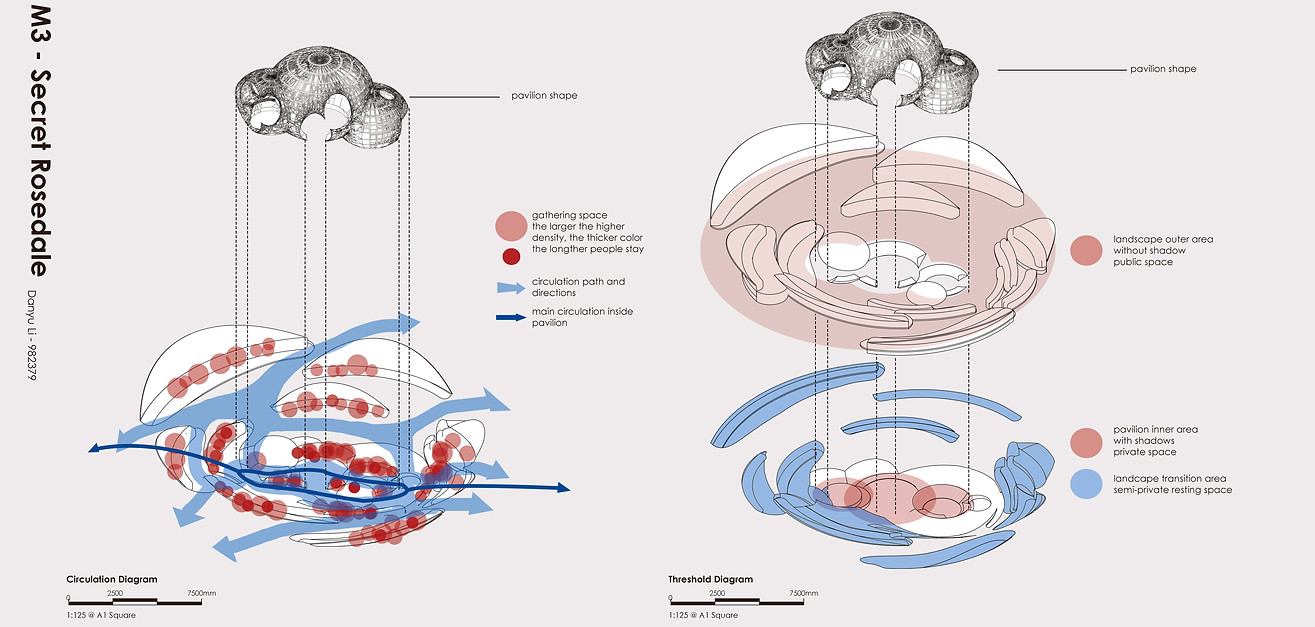

The main pavilion is composed of 3 spheres, the middle one is the pavilion centre for seminar and quartet performance, the other two on both sides is pointing to the direction of pathways, and also they are smaller than the middle one, working as transitional zone and provide supplementary sitting space.

The pavilion is made from 4mm thick steel sheets welded together in-site. The landscape sits are made from concrete, they then painted with white matte paints.

DD2021_M03_DANYU LI_982379_页面_1.jpg
DD2021_M03_DANYU LI_982379_页面_2.jpg

Part 1

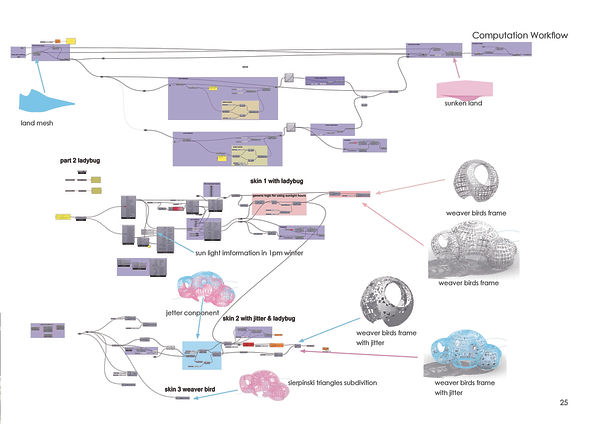

Computation Workflow

DD2021 Portfolio_danyu li_982379_页面_24.jpg
DD2021 Portfolio_danyu li_982379_页面_25.jpg

Part 2

Render Image

DD2021_M03_DANYU LI_982379_页面_3.jpg
